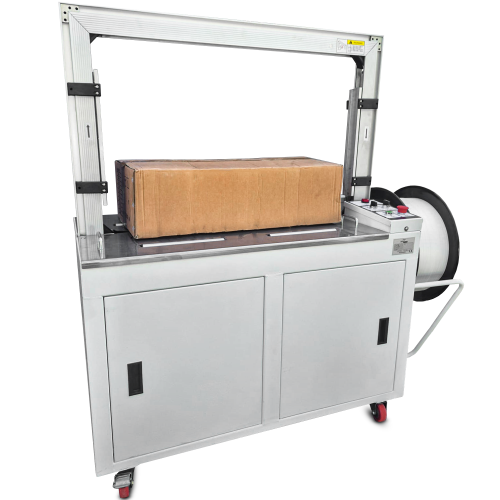

Automatic strapping machine LT101
Regular price:
product unavailable
add to wish list
0
Description
Automatic Frame Strapping Machine 101 for PP Strapping - Adjusted for 12mm Strapping
Technical Specifications:
Model: LT101
Power Supply: 380V 50/60Hz 1.0 kW
Dimensions: L 1400 mm * W 628 mm * H 1418 mm
Strapping Specifications:
Minimum Package Size: W 80 mm * H 60 mm Standard Frame Size: W 800 mm * H 600 mm (Adjustable as needed)
Work Table Height: 750 mm (Adjustable as needed)
Load Capacity: 80 kg
Strapping Speed: ≤ 2.5 seconds/channel Tightening
Force: 0-60 kg (Adjustable)
Specifications: Width is 9-15 (± 1) mm, and the thickness is 0.55-1.0 (±0.1) mm.
Strip size: Width is 160-180 mm, Inner diameter is 200-210 mm, Outer diameter is 400-500 mm.
Bonding method:
Parallel binding, methods include point motion, uniform beating, photoelectric induction switch, foot switch, etc.
Bonding method: Hot melt method, bottom binding, bongo surface ≥90%
