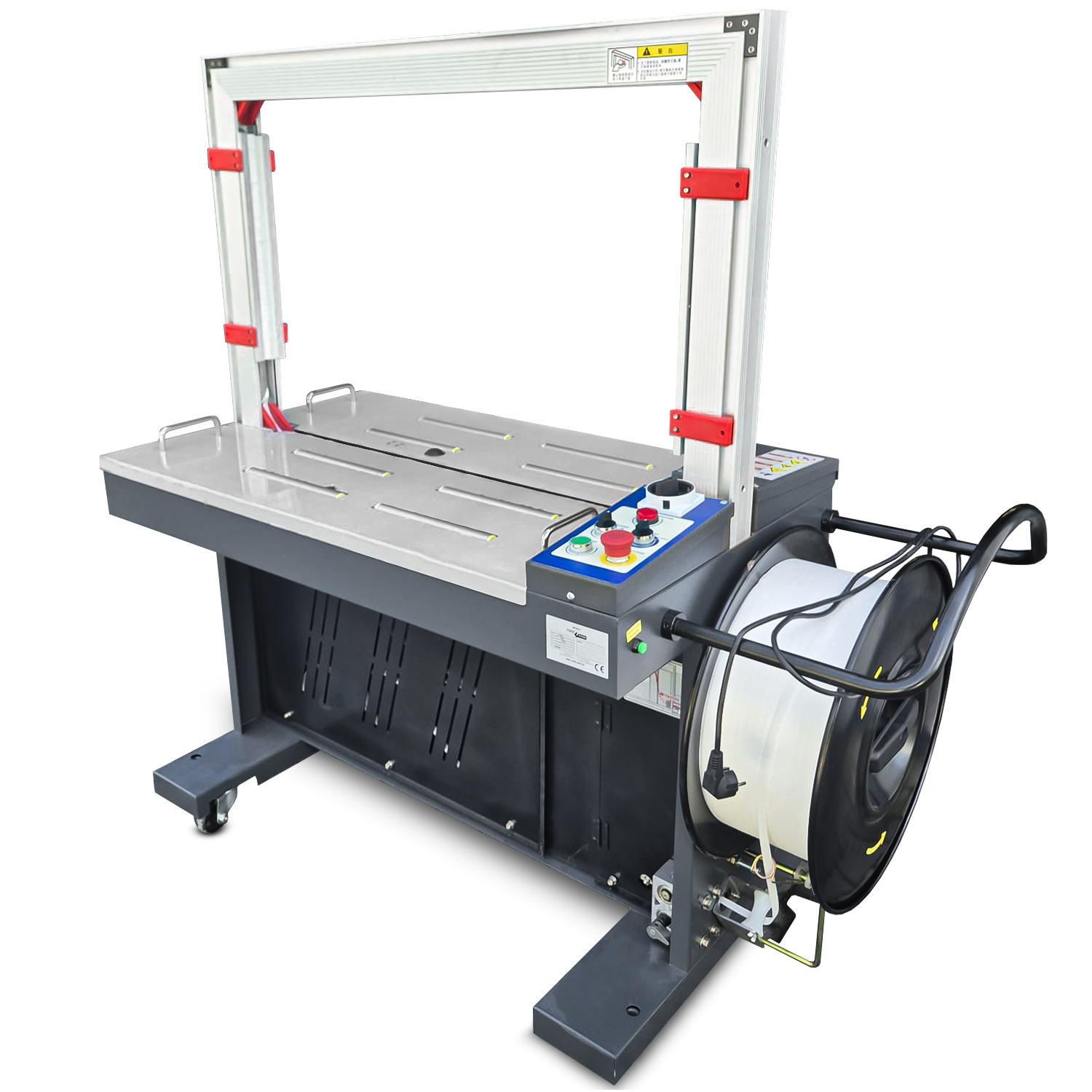

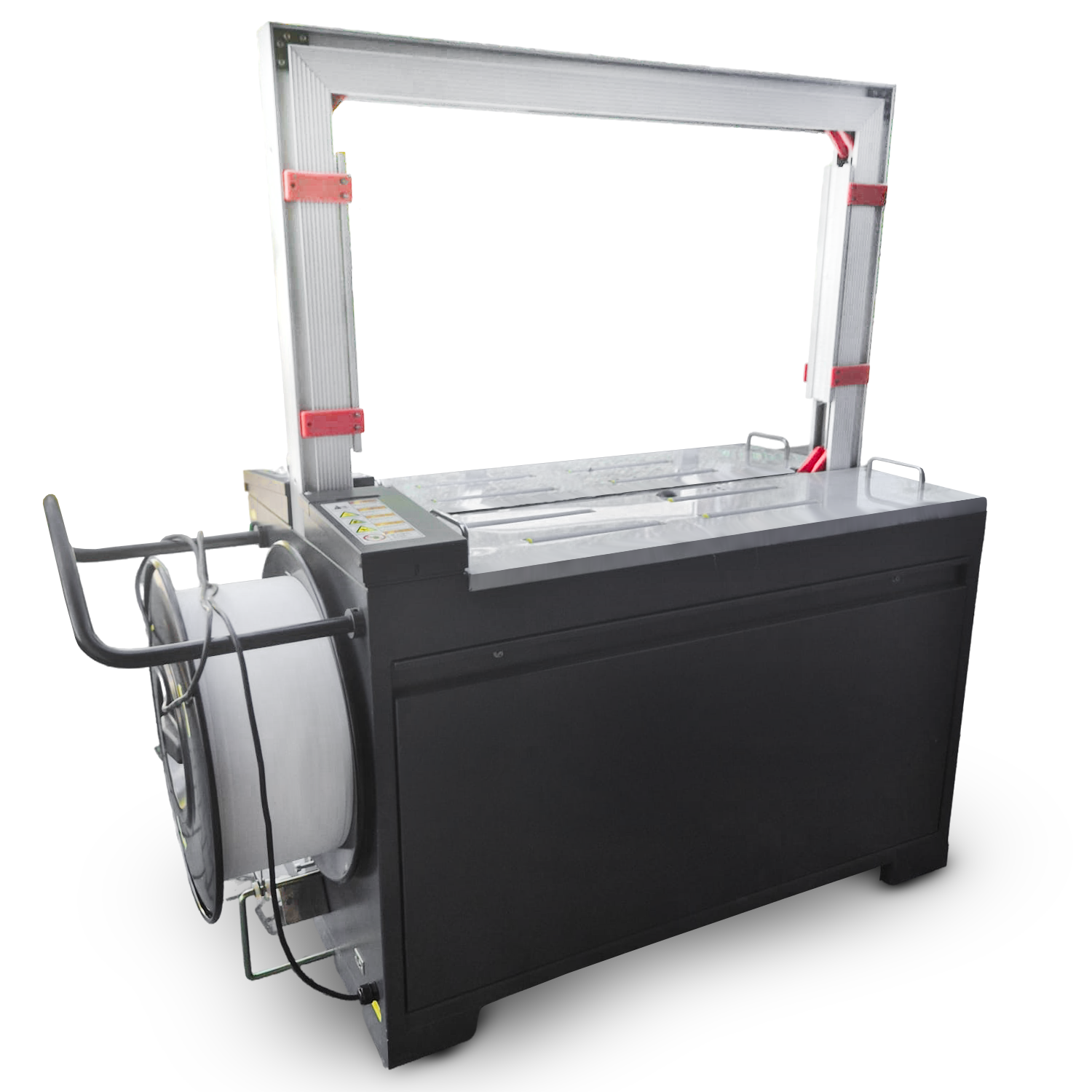

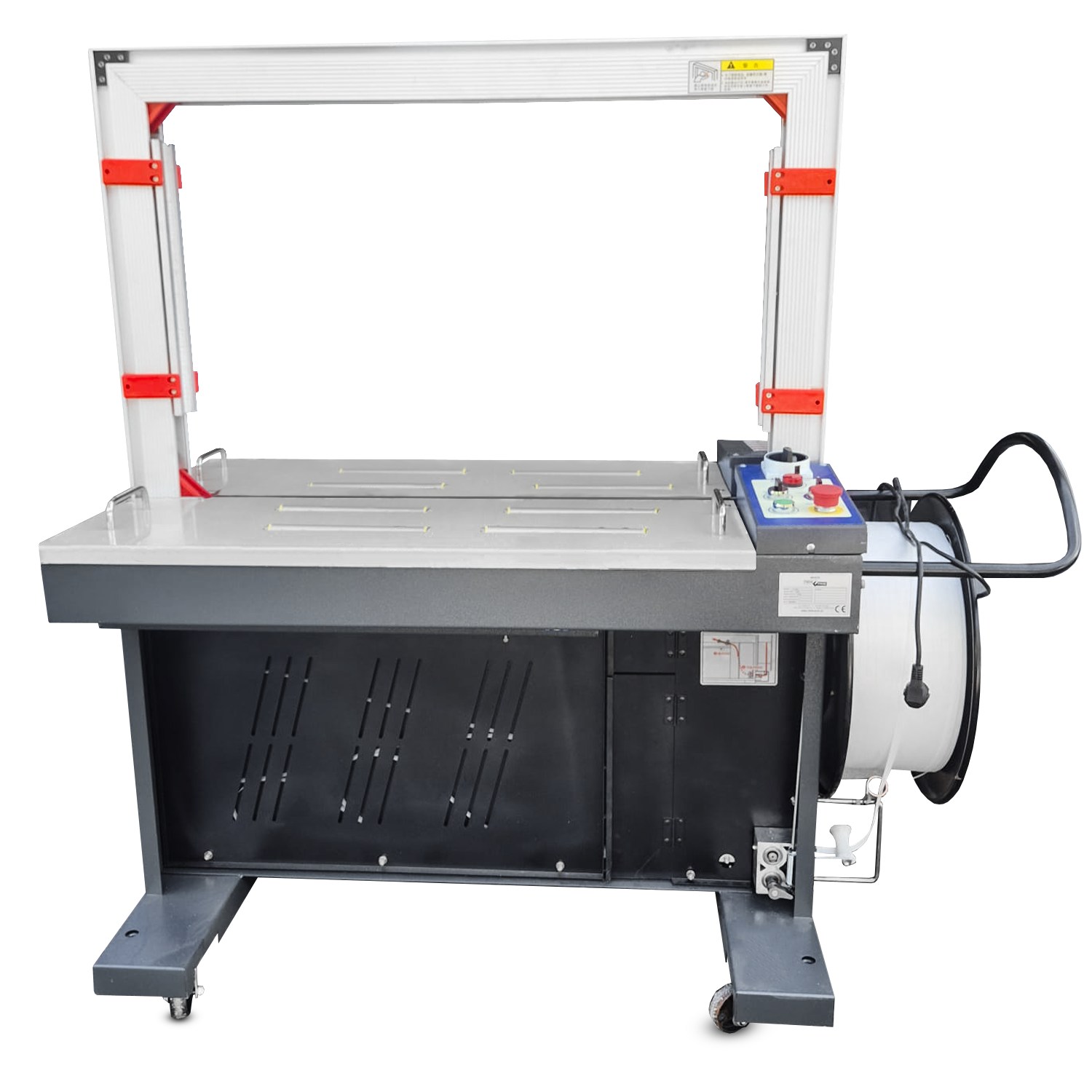

Automatic strapping machine LT201
Regular price:
€1,690.58
product unavailable
add to wish list
0
Description
This strapping machine is designed for strapping parcels, cardboard boxes, paper boxes, newspapers, magazines, and other products using polypropylene (PP) strapping.
Strap strapping is automatic – the device wraps the product with the strapping, tightens it, seals it, and cuts it. Strapped products are moved manually.
The sealing temperature and strap tension are adjustable.
The strap drum has an electromagnetic brake to prevent the strap from unwinding.

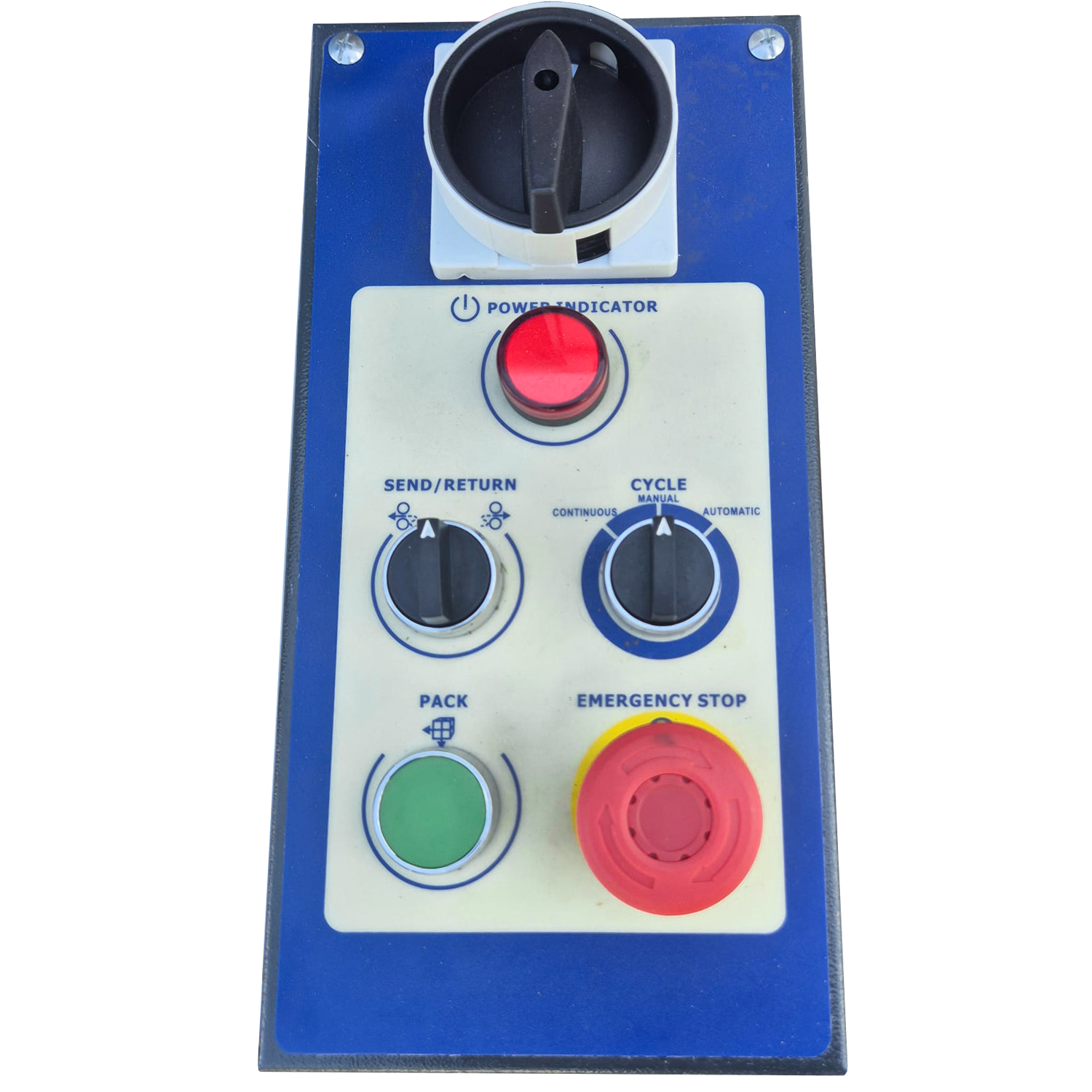

Strapping is activated by a button, foot pedal, or proximity sensor placed under the product.
Technical Specifications:
Model: LT201
Power Supply: 230V
Dimensions**: L 1400 mm × W 620 mm × H 1435 mm
Packaging Dimensions**: L 1500 mm × W 800 mm × H 100 mm
Worktable Height: 750 mm
Load Capacity: 80 kg
Net Weight**: 150 kg
Strap Width: 9 mm–15 mm
Strap Coil: Coil inner diameter: 200–210 mm,
outer diameter: 400–450 mm, width (face): 170–190 mm
Strapping Speed**: ≤2.5 s/stroke
Strapping Specifications: Min. Package dimensions: W 80 mm × H 60 mm
Maximum package dimensions:
Internal arc size Gluing technique: Hot melt Gluing type: Bottom gluing, gluing area ≥90%, gluing position deviation ≤2 mm
Clamping force: 0-50 kg
Power: 400 W, 3 A
Power supply: 1 P, 220 V, 50-60 Hz (see nameplate)
Noise emission: ≤75 dB(A)
Adjustable elements: arc size, belt width
Notes: **Standard arc size: W 800 mm × H 600 mm The device is adjusted for 12 mm tape
